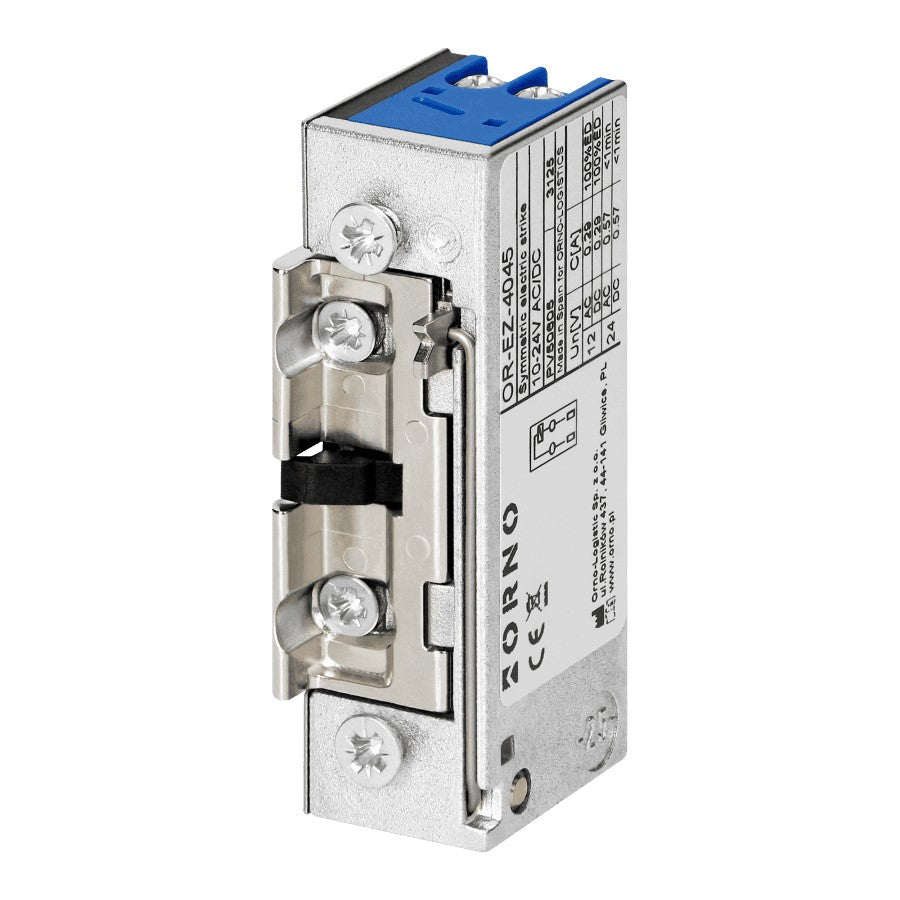

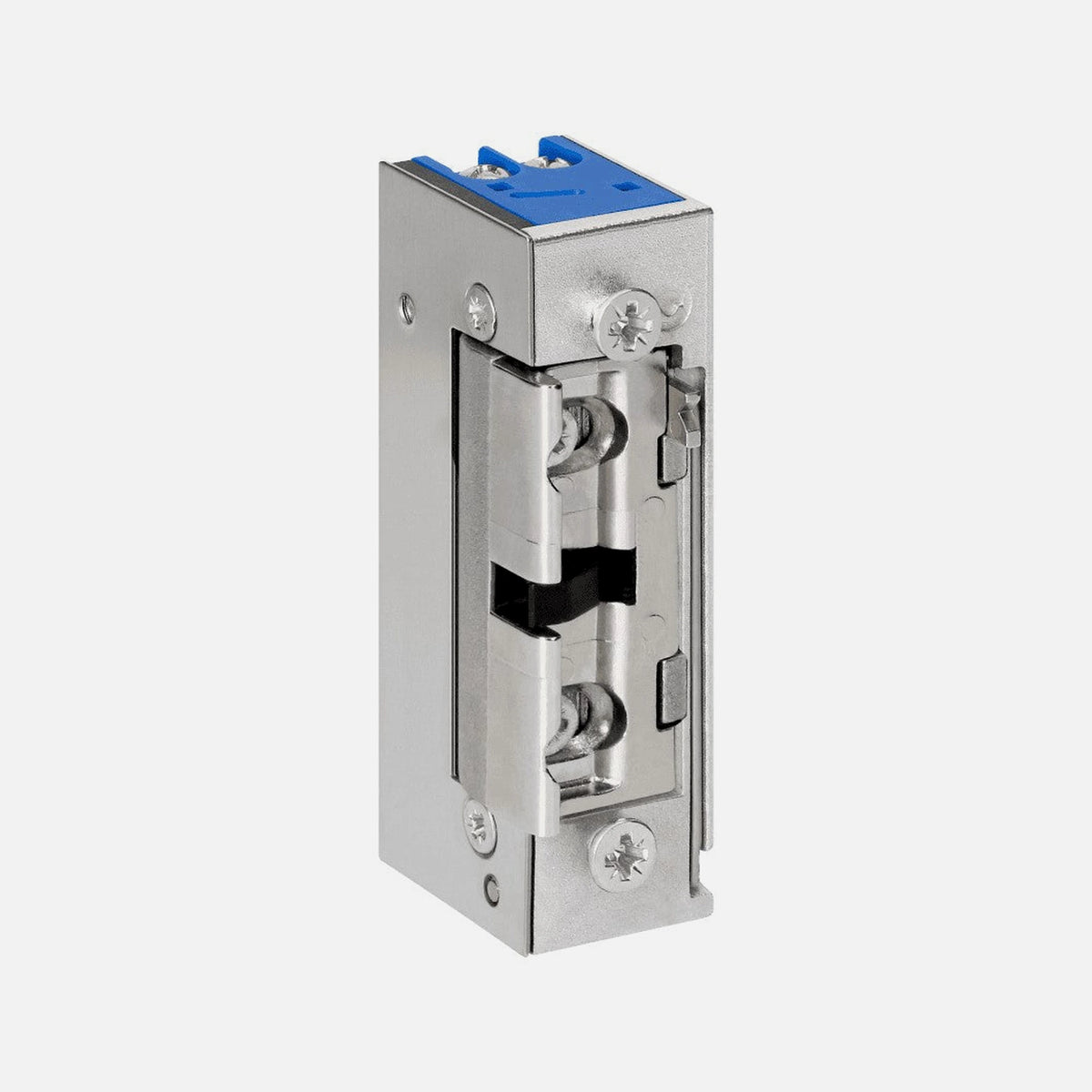

Orno OR-EZ-4045 Symmetric Electric Door Strike – 10-24 V AC/DC, Adjustable Latch

The Orno OR-EZ-4045 is a symmetric electric door strike for door-entry and video-intercom systems — the component that releases a door latch electrically when someone buzzes a caller in. Symmetric construction means one strike suits both left- and right-hand doors, and an adjustable latch lets it fit a wide range of doors and frames.

It runs across a wide 10-24 V AC/DC supply range with low current draw (280 mA at 12 V DC), so it pairs easily with the power in most doorphone kits. A mechanical unlocking feature can hold the door permanently open when needed. It's built for flush frame mounting in a vertical position on standard doors.

Key Features

• Symmetric electric strike — one unit for both left- and right-hand doors
• For door-entry and video-intercom (doorphone) systems
• Adjustable latch fits a wide range of doors and frames
• Wide 10-24 V AC/DC supply range
• Low current draw: 280 mA at 12 V DC / 250 mA at 12 V AC
• Mechanical unlocking to hold the door permanently open
• Flush frame mount, vertical position

Technical Specifications

• Type: Symmetric electric door strike
• Direction: Left / right (symmetric)
• Nominal voltage: 10-24 V AC/DC
• Current draw: 280 mA @ 12 V DC / 250 mA @ 12 V AC
• Latch: Adjustable
• Mechanical unlocking: Yes
• Memory: No
• Mounting: Flush frame mount, vertical
• Works with: Doorphone & video-doorphone systems
• Manufacturer part number: 30667 (OR-EZ-4045)

Product Benefits

• One symmetric unit covers both door hands — fewer part numbers to stock
• Wide 10-24 V range works with almost any doorphone power supply
• Adjustable latch means a proper fit on non-standard frames
• Mechanical hold-open is handy for deliveries or busy periods

Why You'll Love It

• The symmetric design just fits, whichever way the door swings
• Low current draw keeps it easy on a small doorphone transformer
• Solid, standard component that any installer will recognise
