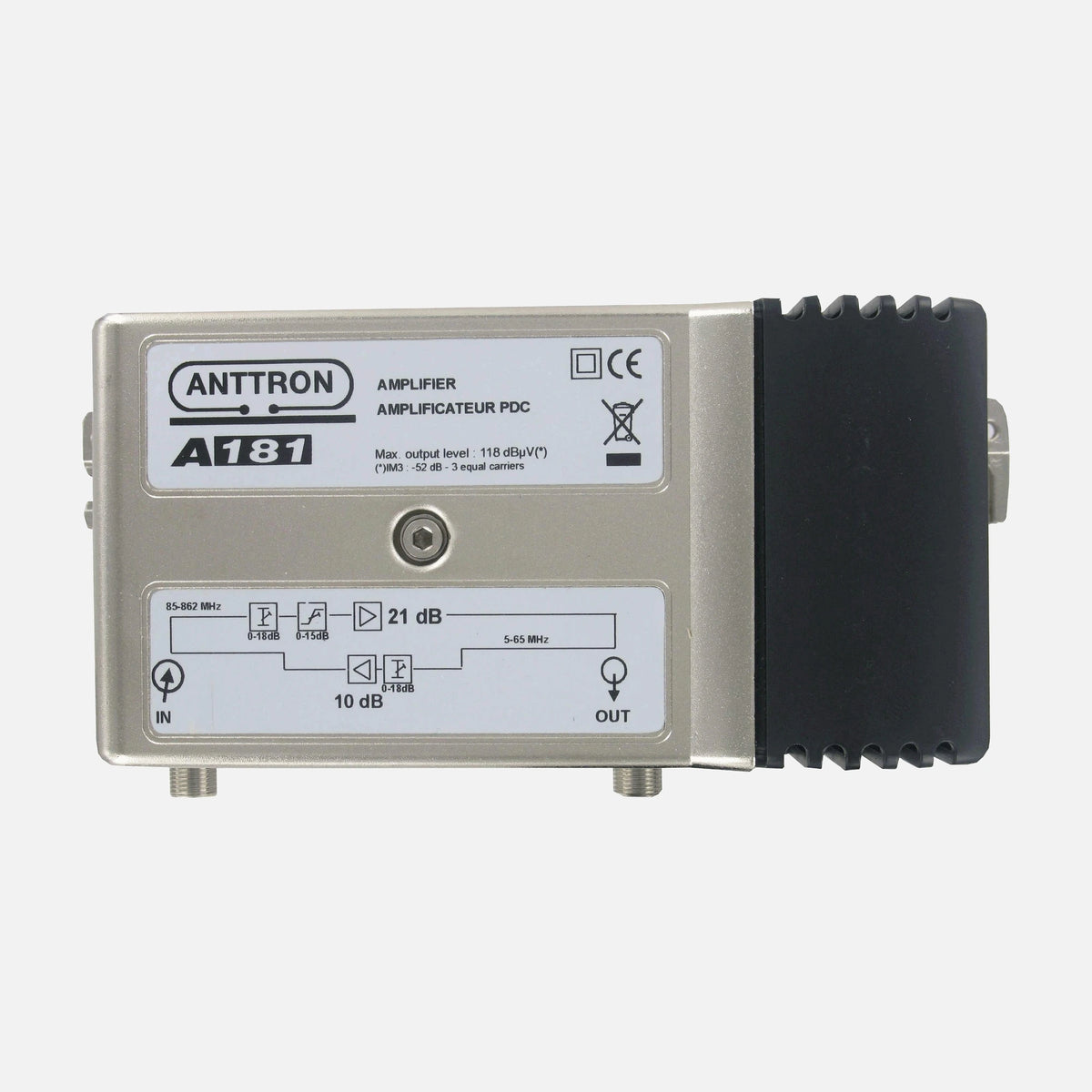

Anttron A181 Wideband CATV Amplifier – 21 dB Forward, 10 dB Return & GaAs-MMIC 230 VAC

The Anttron A181 is a wideband CATV amplifier specifically designed for CATV installations handling both digital and analogue channels. Its die-cast aluminium chassis and GaAs-MMIC transistor technology combine to produce a compact unit with high linearity and efficiency, suitable for trunk and distribution applications.

The amplifier includes separate forward-path gain adjustment (0–18 dB range), slope adjustment, and return-path gain adjustment, allowing the installer to compensate for cable loss characteristics across the full frequency range. A noise figure below 7 dB maintains signal quality even at the end of a long cable run.

Key Features

• 1 input, 1 output — no test output
• Forward gain (85–862 MHz): 21 dB
• Return path gain (5–65 MHz): 10 dB
• Attenuation range (forward and return path): 0–18 dB
• Slope attenuation range (forward path): 0–15 dB
• GaAs-MMIC transistor for high linearity and efficiency
• Die-cast aluminium chassis for compact, robust construction
• Mains powered at 230 VAC

Product Benefits

• Separate forward and return path gain adjustments allow precise optimisation of both downstream and upstream signal levels in two-way CATV networks
• Slope adjustment compensates for frequency-dependent cable attenuation, ensuring flat signal response across the full forward band
• GaAs-MMIC technology delivers high maximum output level (118 dBµV) with low noise for reliable reception at the subscriber end
• Die-cast aluminium housing provides mechanical robustness and effective heat dissipation in continuous-operation installations
• Low 6 W power consumption reduces operating costs in always-on CATV head-end installations

Technical Specifications

• Number of Inputs: 1
• Number of Outputs: 1
• Test Output: No
• Forward Gain (85–862 MHz): 21 dB
• Return Path Gain (5–65 MHz): 10 dB
• Attenuation Range (forward/return path): 0–18 dB
• Slope Attenuation Range (forward path): 0–15 dB
• Noise Figure: <7 dB
• Input/Output Return Loss: >10 dB
• Max. Output Level (IM3: -52 dB, 3 equal carriers): 118 dBµV
• Voltage: 230 VAC (-10%, +15%)
• Power Consumption: 6 W

Why You'll Love It

• Includes an Allen key and instruction manual for complete installation out of the box
• Compact aluminium chassis installs easily in a standard CATV head-end rack or enclosure
• The 0–18 dB attenuation range and 0–15 dB slope adjustment provide the flexibility needed for diverse cable plant configurations
• Designed specifically for CATV applications — not a generic amplifier — so all specifications are optimised for this use
