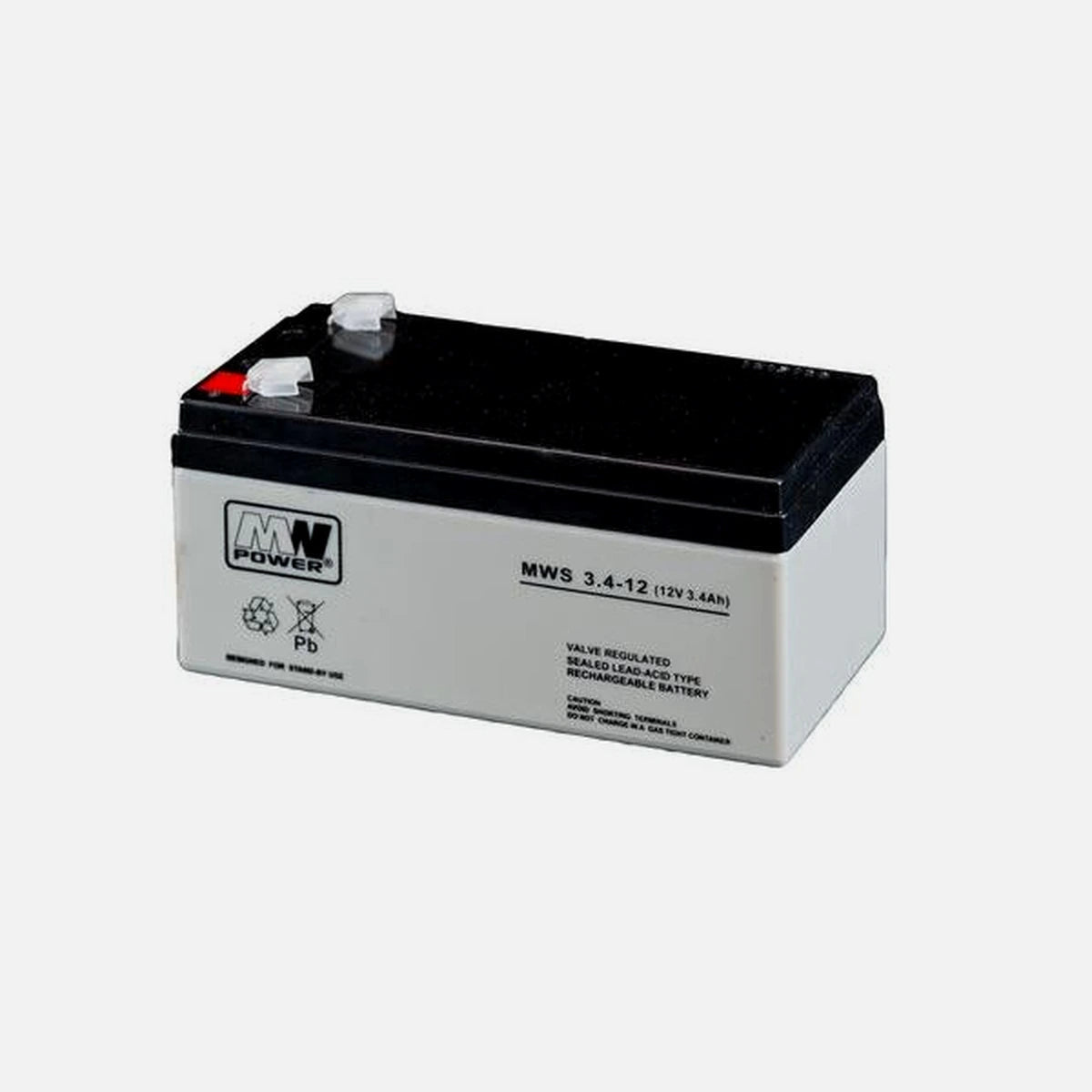

MPL MWS3.4-12 VRLA AGM Lead-Acid Battery 12 V 3.4 Ah – Faston Tabs, UPS & Alarm
The MPL MWS3.4-12 is a 12V/3.4Ah VRLA (AGM) sealed lead-acid battery designed for control panel charging systems, UPS, alarm systems, and portable device backup power.Read the full description
Out of stock
Couldn't load pickup availability
Description
Description
The MPL Power Elektro MWS3.4-12 is a sealed, maintenance-free lead-acid battery built in VRLA (AGM) technology. It is designed primarily for use in control panel charging systems and also serves as a backup power source in portable devices. The rated service life is 3–5 years when stored or operated at 20–25°C.
Its compact 13.4×6.7×6 cm footprint allows it to fit into confined enclosures typical of alarm panels, UPS units, and automation cabinets. The battery supports both standby and cyclic charging modes.
Key Features
- VRLA (AGM) sealed construction — maintenance-free, no acid spillage risk
- 12V nominal voltage with 3.4Ah nominal capacity
- Dual charging mode support: standby use (13.50–13.80V) and cyclic use (14.40–15.00V)
- Max. discharge current of 35A for 5 seconds for high-demand surge loads
- Internal resistance of 46 mΩ when fully charged
Product Benefits
- Sealed AGM design eliminates topping-up and reduces maintenance effort
- Wide operating temperature range (-20°C to 50°C) covers both indoor and unheated enclosure installations
- Low max. charge current (0.95A) allows safe charging from low-power charger outputs
- Compact dimensions make it compatible with most standard alarm and UPS battery bays
- Rated 3–5 year service life at 20–25°C gives predictable replacement cycles
Technical Specifications
- Model: MWS3.4-12
- Technology: VRLA (AGM)
- Nominal Voltage: 12V
- Nominal Capacity: 3.4Ah
- Max. Discharge Current: 35A (5 sec.)
- Max. Charge Current: 0.95A
- Standby Charging Voltage: 13.50–13.80V
- Cyclic Charging Voltage: 14.40–15.00V
- Internal Resistance (charged): 46 mΩ
- Operating Temperature (Discharge/Charge/Storage): -20°C to +50°C
- Dimensions (L×W×H): 13.4×6.7×6 cm
- Weight: 1.300 kg
Why You'll Love It
- Drop-in replacement for most 12V/3.4Ah alarm and UPS battery slots without rewiring
- Maintenance-free sealed design means no scheduled fluid checks
- Suitable for UPS, emergency power systems, automation systems, security and alarm systems
- Package includes 1× MPL MWS3.4-12 VRLA 12V/3.4Ah battery
